Ametek Industrial Battery Chargers
Deka PowerForce Charger
Eclipse II Plus Opportunity - High Frequency
Eclipse II Conventional - High Frequency
Introducing a unique and exclusive fully-integrated charging system designed specifically for all Deka motive power batteries — lead and lithium. The Deka PowerForce is the premier, cutting-edge charger for all Lift Truck batteries — regardless of the manufacturer. It is a highly energy efficient charger featuring a large, customizable intuitive color touchscreen control panel, optimal space functionality, and maintains the Deka Dependability, keeping your fleet moving and eliminate downtime worries with Deka’s industry leading safety, reliability, and dependability.
Eclipse II Conventional - High Frequency
Eclipse II Plus Opportunity - High Frequency
Eclipse II Conventional - High Frequency
The AMETEK Prestolite Power Eclipse II charger offers the maximum performance required for a wide variety of industrial charging applications. The Eclipse II chargers set a new industry standard for efficiency, accuracy and flexibility. The charger uses advanced IGBT high frequency power conversion circuitry to provide efficient dependable service with excellent power factor.
This powerful charger is designed to recharge any lead-acid battery — flooded or sealed. The Eclipse II can even be set to recharge Nickel Cadmium (NiCad) batteries.
Designed to be efficient, this charger can recharge a 100% discharged battery within 8 hours, while automatically adjusting for varying levels of battery discharge.
Eclipse II Plus Opportunity - High Frequency
Eclipse II Plus Opportunity - High Frequency
Eclipse II Plus Opportunity - High Frequency

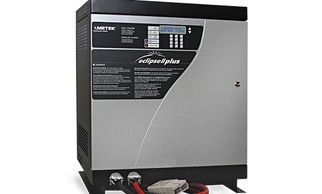

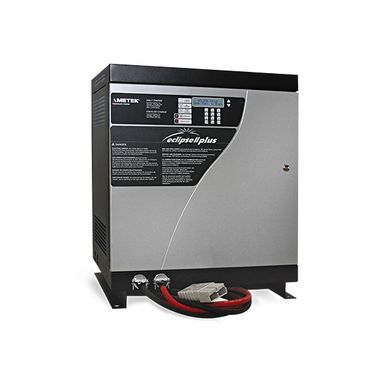

Designed for maximum performance, Eclipse II Plus chargers set a new industry standard for efficiency, accuracy and flexibility. The charger uses advanced IGBT high frequency power conversion circuitry to provide efficient dependable service with excellent power factor. The Eclipse II Plus is optimized for opportunity charging including a 25A/100 start rate and numerous control features designed specifically for the specialized needs of the opportunity charge application. Rated to fully recharge a 100% discharged battery in less than 8 hours, the charger can also automatically adjust for varying levels of battery discharge.
Eclipse II Extreme High Frequency
Eclipse II Extreme High Frequency
Eclipse II Plus Opportunity - High Frequency
Designed for maximum performance, the Eclipse II Extreme sets a new industry standard for efficiency, accuracy and flexibility. The charger uses advanced IGBT high frequency power conversion circuitry to provide efficient dependable service with excellent power factor. The Eclipse II Extreme is optimized for fast charging, including a 40A/100 start rate and numerous control features designed specifically for the specialized needs of the fast charge application. Rated to fully recharge a 100% discharged battery in less than 8 hours, the charger can also automatically adjust for varying levels of battery discharge.
Eclipse II Lithium
Eclipse II Extreme High Frequency
Accu-Charger - Ferroresonant
We have expanded our trusted Eclipse II charger line to include an option that is lithium-ion ready. The Eclipse II Lithium is specially designed to provide fast, safe and efficient charging for lithium-ion technology batteries. This hybrid design enables the Eclipse II Lithium to be perfect for opportunity, conventional or fast charging applications. It utilizes CAN network communication, which allows performance critical data to be constantly monitored and communicated between the Battery Monitoring System and our charger.
Accu-Charger - Ferroresonant
Eclipse II Extreme High Frequency
Accu-Charger - Ferroresonant
The Accu-Charger sets the industry standard for accuracy, efficiency, flexibility and reliability of a ferroresonant battery charger. Designed to recharge any 100% discharged lead acid battery in its ampere-hour rating within 8 hours, the Accu-Charger is engineered to provide the maximum in charging performance.
The charger uses ferroresonant power conversion circuitry, which is virtually maintenance-free, to provide years of dependable service. The power conversion circuitry maximizes battery life by using a constantly tapering charge, which is automatically regulated by the "On Charge" battery voltage. The output current of the Accu-Charger is determined by the state of discharge of the battery. The battery is precisely charged, based on its depth of discharge.
Battery-Mate 100
Battery-Mate 100
Battery-Mate 100
The Battery-Mate 100 is an industrial-rated charger, value-designed and extensively engineered to furnish an efficient, problem-free charge each time a battery is connected. Sized and rated to charge 100% discharged batteries in 8 hours or less, the Battery-Mate 100 uses ferroresonant power conversion circuitry, which is virtually maintenance-free, to provide years of dependable service.
The power conversion circuitry maximizes battery life by using a constantly tapering charge, which is automatically regulated by the "On Charge" battery voltage. The output current of the charger is determined by the state of discharge of the battery. The battery is precisely charged, based on its depth of discharge.
Battery-Mate 80
Battery-Mate 100
Battery-Mate 100
Designed for efficiency and long life, the Battery-Mate 80 can recharge 80% discharged batteries in 8 hours or less, and is engineered for one and two shift operations. Unmatched in the industry, the Battery-Mate 80 has two interchangeable controls options, allowing greater flexibility and automation of any battery charging operation.
Battery-Mate 60
Battery-Mate 100
Battery-Mate 60
The Battery-Mate 60 is an industrial rated ferroresonant battery charger. It is designed for industrial applications where the batteries are 80% discharged, and 10 hours are available for recharge.
Ultra Maxx
Ultra Charge
Battery-Mate 60
The Ultra Maxx combines all of the flexibility, ruggedness, and reliability of a SCR charger with special design features tailored especially for opportunity and fast charging. Building upon the time-tested Ultra Charge foundation, the Ultra Maxx adds the increased charge rate, special programming features, and extensive data collection necessary for opportunity charging. Its sophisticated UC2000 control can adapt to any type of battery using a built-in library of recharge profiles while the 60+ control parameters enables tailoring to site requirements of any user site. Data archiving is an integral part of the control design, allowing for effective ongoing monitoring of site operations.
Ultra Charge
Ultra Charge
Ultra Charge
The Ultra Charge is one of the most flexible battery chargers on the market. Able to charge flooded cell and sealed cell lead-acid batteries of nearly any voltage or ampere-hour size, it is rated to recharge a 100% discharged battery in 8 hours or less.
Ametek Accessories
WBID
BID with Amp Hour Accumulator
WBID
The all new WBID is the ultimate battery mounted monitoring device that lowers maintenance costs and increases productivity by intelligently managing your fleet of assets. The WBID goes much further than the standard battery device with monitoring and recording of critical data points, such as
- Average and Min/Max Temperature
- Ah in/out
- Total EQ hours
- Average connects per day
We listened to you, our customers, and created a new 30-day summary with easier access to critical data for your fleet evaluation, utilizing the graphical tools from our new DataLink3 software package.
BID
BID with Amp Hour Accumulator
WBID

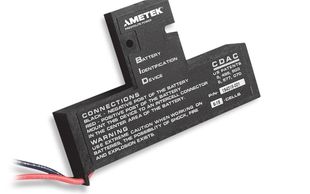

The AMETEK Prestolite Power Battery Identification Device (BID) provides the charger with the ID number of the battery. The BID also tells the charger what kind of battery it is, its Ah capacity, how many cells it has and what start rate to use. Throughout the charge, the BID provides the charger with updated battery temperature readings. With a BID in place, any BID capable controlled charger can provide the optimum temperature compensated charge profile for that particular battery.
BID with Amp Hour Accumulator
BID with Amp Hour Accumulator
BID with Amp Hour Accumulator
Like the BID, the BID with Ah Accumulator is a Battery Identification Device, and provides the charger with the ID number of the battery. Also, like the standard BID, the BID with Ah Accumulator tells the charger what kind of battery it is, its Ah capacity, how many cells it has, and what start rate to use. In addition to those features, the BID with Ah Accumulator, provides lifetime Ah in and out of the battery and lifetime average temperature -- both excellent measures of battery life used and remaining. Of course, the BID with Ah Accumulator also provides the charger with real time temperature data allowing the charger to deliver the optimum temperature compensated charge profile for that particular battery.
DC Power TEchnologies
Eco Charger
Eco Charge BMMBT
Eco Charge BMMBT
The EcoCharge® ECO970 three phase chargers are an efficient, flexible, compact and feature rich series of modular battery chargers. They suit a wide variety of industrial charging applications, including materials handling, ground support and automated vehicles.
Models are available from 200 to 600VAC three phase AC supplies, covering any common voltage found worldwide. When used with batteries fitted with an EcoCharge BMM-BT or a CAN-BUS communicating BMS (or a mixture of both) the ECO970 charger can appropriately charge a mixture of batteries without operator input.
Features:
- Carries global set of compliance marks: UL, cUL, FCC, IC, CE, UKCA, RCM and Giteki.
- Flexible and expandable power, with multiple cabinet models with a module count to suit the application.
- Multiple models to cover a range of applications, each with a different maximum output power.
- Proven reliability
Eco Charge BMMBT
Eco Charge BMMBT
Eco Charge BMMBT
The Bmmbt monitors your fleet and enables Conventional, Opportunity, Fast Charger methods and or a Mixed Battery Chemistries to take place with the same Charger, detailed logging, measurement based temperature and voltage drop compensation are just a few of the features!
ACT Chargers and Accessories
Quantum
Battview II
Battview II

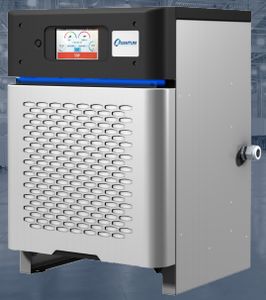

Quantum chargers are designed so you can fully control your charger fleet from anywhere. With a five-year, world-class warranty, Quantum chargers are smart-grid-ready and solutions-focused, resulting in reduced maintenance and replacement costs.
Battview II
Battview II
Battview II

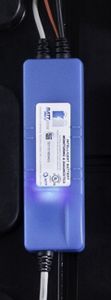

BATTview is the first smart appliance in the material handling industry that allows for real-time, two-way communication between your Quantum charger and ACTview. Remotely access operational logs and battery performance data and easily manage the performance of your forklift batteries.
